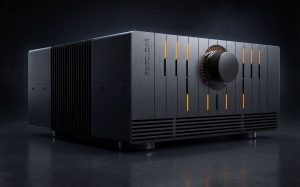

Preamplifier – Delta I
Preamplifier – Delta I
Frequency response
1 Hz - 1 MHz
Weight
25 kg (55 Ib)
Dimensions (W×H×D)
420х191х438
Type
Preamplifier
Standard
Stereophonic
Class
A
Signal-to-Noise Ratio, dB
110
THD, %
0,0003
Power per channel (2 Оhms), W
-
Power per channel (4 Оhms), W
-
Power per channel (8 Оhms), W
-
Inputs
1 BSCB/XLR/RCA, 4 liner RCA, 1 end-to-end HT BYPASS RCA
Outputs
1 adjustable BSCB/XLR/RCA, 1 headphone jack 6.35
Amplification factor, dB
12
Input Impedance
50 kОhms (RCA), 100 kОhms (XLR)
Input Sensitivity
350 mW (RCA), 550 mW/ (XLR)
Max Input Signal
2 В (RCA), 4 В (XLR)
Output Impedance
50 Оhms (RCA), 100 Оhms (XLR)
Output signal
2,3 W (RCA), 4,6 W (XLR)
Recommended headphones impedance
from 32 Ohms
Power Consumption
60 W /in standby mode: 0,5 W
Damping Factor
-
Additional connections
3.5mm trigger input and output, 3.5mm trigger input for home theater system
Power Supply
1 toroidal transformer (750 VA), 6 stabilized multi-level sources
Remote control
Included (aluminum body)
